SEPA® Industrial (Large) Oil Separator

Seismic Design


© 2010 SEPA. All rights reserved. Terms and Conditions

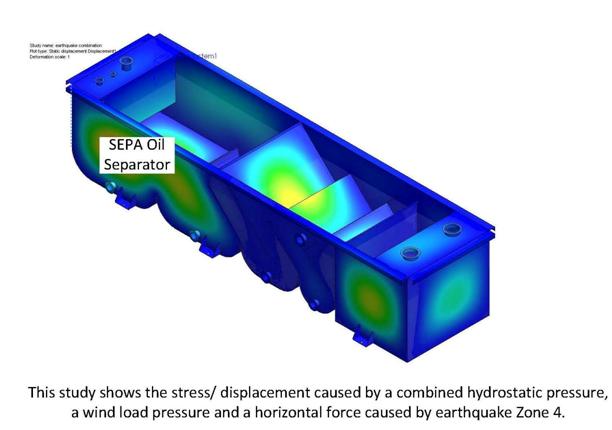

The illustration above is interesting in that it has been carried out to meet a customer requirement for a Middle East Oilfield.


The technical requirements to do this include producing a 3-Dimensional (3-D) drawing which will interface with the appropriate Stress programs and defining the appropriate wind, hydrostatic and earthquake forces.


At the same time, the 3-D drawing was also used by the customer to interface directly with their site piping 3-D drawing.


Therefore, we must ensure  that the software used is essentially universally compatible.


It is becoming obvious that we are in a new era where the designs must be international.
